Pyrolysis

Materials

• An organic aerogel, such as a resorcinol-formaldehyde aerogel (see the recipe called Organic Aerogels under the Make section) or other suitable precursor aerogel
• Nitrogen or argon gas tank equipped with a regulator with a 30 psi output max

and

• High-temperature (1100°C max) tube furnace such as a Lindberg Blue/M Mini-Mite
• Fused quartz process tube
• End caps to connect gas tank to quartz tube and to connect other end of quartz tube to exhaust line

or alternatively,

• A high-temperature box furnace or oven equipped with a thermometer
• Ceramic crucible
• Pipe fitting to adapt gas tank output to furnace input
• Exhaust line out of furnace

Optional

• Mass flow meter or controller

Overview

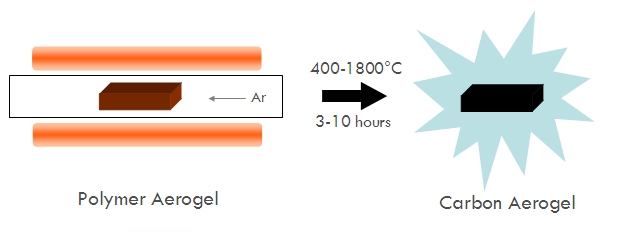

Some aerogels, like carbon aerogels, are derivative or secondary aerogels, that is, they are derived by processing already existing aerogels.  For example, carbon aerogels are typically prepared by pyrolyzing organic aerogels such as resorcinol-formaldehyde aerogels in an inert atmosphere.

Aerogel Preparation

1. Prepare a suitable precursor aerogel (to make carbon aerogels see the recipe for making Organic Aerogels for a suitable resorcinol-formaldehyde precursor aerogel).
2. Place the aerogel into the center of the quartz tube or crucible.
3. If using a tube furnace, place the quartz tube in the center of the tube furnace such that the aerogel is halfway along the heated length.  If using a box furnace, place the crucible in the center of the furnace where possible.
4. Connect the nitrogen or argon line.  If using a quartz tube, slide and secure the end cap connected the gas tank onto one end of the tube.  If using a box furnace, attach the gas supply line to a suitable, sealed fitting (such as a barb-to-NPT adapter) attached to the furnace.
5. Connect an exhaust line to your system and route the exhaust into a suitable vent such as an exhaust duct or a chemical fume hood.
6. Open the gas tank.  Open the regulator to allow gas to flow.  A suitable flow rate for a 1″ quartz tube is 200 sccm (standard cubic centimeters per minute) of gas.  If not using a mass flow meter, this should be a few psi and a relatively gentle flow (about what you would use to blow bubbles in a glass of milk).
7. Set the furnace temperature between 600 and 1050ºC (although temperatures of 400-1800ºC will work, this is the common range).   The temperature you set will determine the degree of pyrolyzation (for organic aerogels, the degree of carbonization and/or graphitization).
8. Once at temperature, allow the aerogel to pyrolyze for 3-10 h.  Important: If your system takes a long time to ramp to its temperature set point, you will need to factor this into the total pyrolysis time to get desired results.  A fast-heating furnace like a Mini-Mite will take minutes to reach temperature and require longer soak times at the set point than a large box furnace that takes 1-3 hours to ramp (since the aerogel will be above pyrolyzable temperatures during much of the ramp phase).
9. Turn the furnace off.  Wait until the furnace has cooled to ~200ºC or less before opening.
10. Turn gas tank off.

What’s Happening

In the case of carbon aerogels, the high temperature causes the organic polymer to dehydrate, releasing water vapor, carbon monoxide, and carbon dioxide leaving behind nanocrystalline (effectively amorphous) carbon.  If this is done in air the polymer will simply burn.  To guarantee pyrolysis occurs, an atmosphere of nitrogen or argon or other inert gas is needed.

What Doesn’t Work

• Using any old polymer aerogel.  Most organic aerogels are resorcinol-formaldehyde or melamine-formaldehyde based and these all work.  Other polymer aerogels aren’t guaranteed to.
• Not using an inert atmosphere.  Your aerogel will burn away.  It is sometimes necessary, however, to oxidize some polymers such as poly(acrylonitrile) at a low temperature (300-400ºC) prior to pyrolyzing in an inert atmosphere.

Variables You Can Play With

• Adjusting the flow rate will change the degree of pyrolyzation.  Higher flow rate will result in a cooling effect and may require longer pyrolysis times to get the same results as using a low flow rate.
• Changing the time and temperature of the process will change the degree of pyrolysis.  For some aerogels, this may affect morphology, surface area, and density of the resulting derivative aerogel.

What You Should Get

A pyrolyzed, derivative aerogel such as a carbon aerogel.  In the case of carbon aerogels, you will find that the aerogel will have shrunk significantly in comparision with the precursor aerogel; however, the aerogel will also have lost proportionately about the same amount of mass from dehydrating.  Thus, the resulting density will be about the same as the original precursor aerogel.
